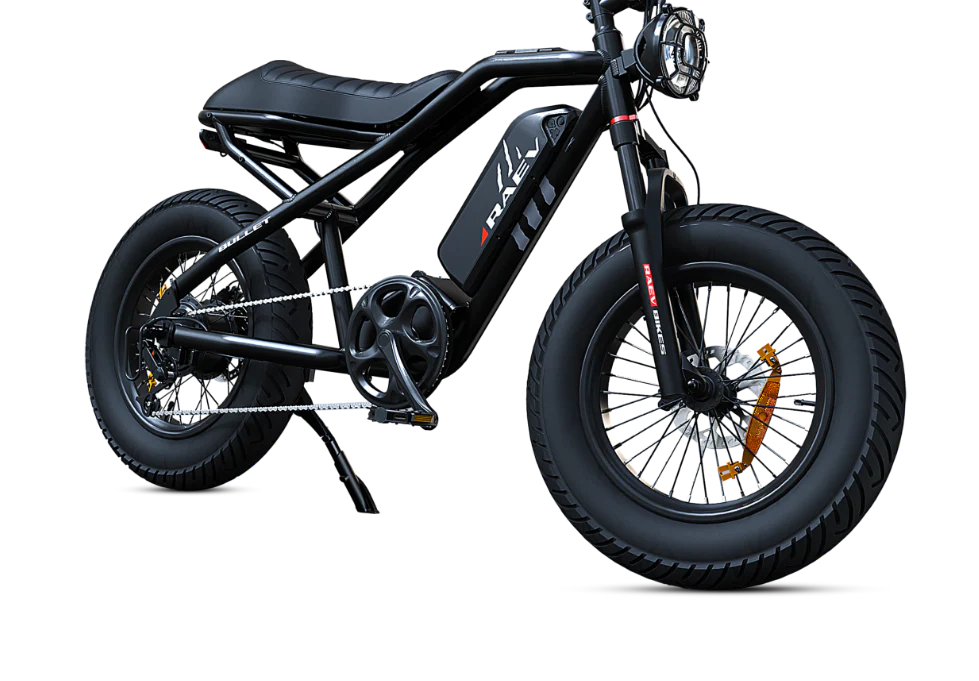

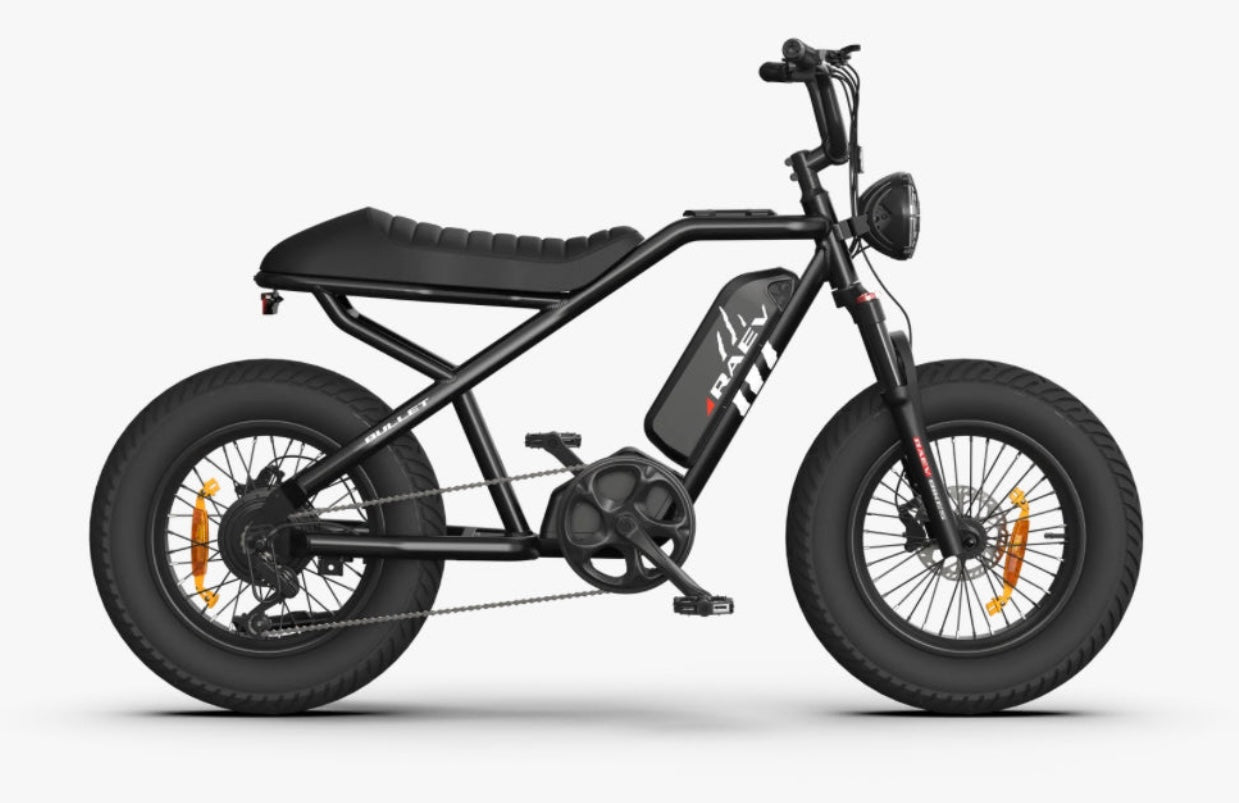

RAEV BULLET V2 E-Bike The Urban Explorer

RAEV BULLET V2  (VERSION SE NOT AVAILABLE)  28Mph Top Speed 50Miles Max Range 48V13Ah Battery 330Lbs OVERVIEW:...
Vendor: RAEV
Availability: In Stock
Product Type: EBIKE
$1,299.00
$1,349.00
$1,299.00
Please hurry! Only 5 left in stock
Limited-Time Offers, End in: 151D 8H 23M 0S
Color: Metallic Black
Subtotal: $1,299.00
10 customers are viewing this product

Free Shipping

Free standard shipping on orders over $150

Shipping Dates Vary

Return Policy

Learn More.

Built And Shipped Within 5 - 7 Bussiness Days

RAEV BULLET V2 E-Bike The Urban Explorer

RAEV BULLET V2 E-Bike The Urban Explorer

$1,349.00 $1,299.00

RAEV BULLET V2 E-Bike The Urban Explorer

$1,349.00 $1,299.00
Color: Metallic Black

RAEV BULLET V2

(VERSION SE NOT AVAILABLE)

28Mph

Top Speed

50Miles

Max Range

48V13Ah

Battery

330Lbs

OVERVIEW:

TIMELESS LOOK, MODERN POWER

With a distinguished design background from Honda, we bring a unique perspective to the design that sets us apart from the competition. Fusing retro style with modern reliability, offering a timeless look and powerful features for a superior riding experience. Join us on the journey and experience the RAEV difference for yourself.

HYDRAULIC DISC BRAKES

With increased power, safety is a priority. The Bullet V2 now features a hydraulic brakes system for better stopping power, providing reliable braking when you need it.

ENHANCED COMPATIBILITY

Bullet V2 is now compatible with RAEV foot pegs and rear racks, also upgradeable to color screen display

COMMUTE WITH CONFIDENCE

The Bullet features a removable 48V 13Ah battery. With a range of up to 50 miles, you'll never worry about running out of power during your daily commute or weekend adventures.

EFFICIENT POWER FOR ADVENTURES

The Bullet's 750W motor with 70Nm of torque ensures a top speed of 28mph. This efficient power is perfect for zipping through city streets and keeping up with traffic. The bike comes pre-programmed as a Class 2 e-bike, but can be unlocked to reach its full potential.

COMFORTABLE RIDE FOR THE EXPLORER

The Bullet's suspension provides a comfortable and smooth ride on paved roads, making it an ideal choice for commuting and cruising. Though not suited for extreme off-roading, it is more than enough for daily city rides.



SPECIFICATIONS:

Top Speed:

Class 2/3, Bullet SE: 25Mph; Bullet V2:28Mph
View Speed and Motor Chart

Range:

25+ Miles in Class2 Throttle-Only; 50+ Miles in Class 1 PAS

Motor:

Bullet SE: 48V 500W; Bullet V2: 48V 750W Brushless Rear Hub Motor

Battery:

48V13Ah Battery

Brakes:

Hydraulic Disc Brakes w/ Electric Cut-Off Sensor

Tires:

Kenda Kraze 20" * 4.0" Puncture-Resistant Fat Tire

Throttle:

Grip Twist Throttle

Max Payload:

330lbs

Front Suspension:

Hydraulic Suspension, 60mm Travel w/ Lockout



Tire Specs

The RAEV electric bike, specifically the Bullet, features inner tubes within its tires. This means that the tires have an interior lining, referred to as an inner tube, which can be inflated to maintain air pressure. In cases of punctures or leaks, the issue typically lies with the inner tube rather than the tire itself. Inner tubes are usually made of rubber, equipped with an inflation valve, and are generally sized to fit within the appropriate width range of the tire.

The Bullet is a sports utility electric bike designed for urban cycling, equipped with 20 x 4.0 inch tires. The number "20" indicates the wheel diameter, while "4.0" represents the tire width. Whether you're commuting or enjoying recreational rides around the city, these durable tires excel on well-paved roads.It is not recommended to ride the Bullet electric bike on soft, sandy, or rocky bike paths.

The choice of tire size should take into account the frame size and structure of the electric bike. They all have recommended maximum tire clearances to fit securely in place. If you have any questions about the maximum tire clearance for the Bullet electric bike, please contact RAEV support.

Disclaimer: Tire sizes are not universal, and different manufacturers may have varying size guidelines. It's crucial to note that one size may not fit all, so if you have any questions about the maximum tire clearance, please contact RAEV support.



Wheel Specs

  • Rim (Wheel):

    • Front Wheel: Inner width 73.5mm, outer width 80.5mm, rim height 23mm
    • Rear Wheel: Inner width 73.5mm, outer width 80.5mm, rim height 23mm
  • Hub:

    • Front Hub: Hub width 135mm, 10mm solid axle
    • Motor Hub: Hub width 190mm, 12mm solid axle
  • Spokes:

    • Front Wheel Spokes: Right side 170mm, left side 169mm (Stainless steel, 36 spokes)
    • Rear Wheel Spokes: Right/Left side 125mm (Stainless steel, 36 spokes)
  • Nipples:

    • Front Wheel: 13G
    • Rear Wheel: 12G
  • PSI (Tire Pressure):

    • Front Wheel: 30 PSI (2.0 bar / 200 kPa)
    • Rear Wheel: 30 PSI (2.0 bar / 200 kPa)

Please note: This information provides specifications for the Bullet GT, including rim dimensions, hub details, spoke lengths, nipple sizes, and recommended tire pressure.

At a glance, here are some quick facts for Bullet's battery:

  1. 3-Pin Charger Compatibility: 2amp, 3amp, 5amp
  2. 2 Keys are included(The key is hanging on the front brake cable of the bicycle)
  3. Voltage: 48V
  4. Capacity: 13Ah
  5. Watt Hours: 624Wh
  6. Weight: 8.4 Lbs.

Battery Charging

Open the soft cover on the battery side

Insert the plug of the charger into the charging port of the battery and connect the other plug to the power supply

The status light of the charger is red

After the battery is fully charged, the status light of the charger is green

Remove the charger, keep it properly and close the soft cover

If the battery is charged on board, please power off the instrument

(During the charging , the battery is unable to power on, and the indicator light remains unlit.)



Locating Your Keys

The key is hanging on the front brake cable of the bicycle. If unable to locate your keys, please contact us!



How to Store

When it's time to give your ebike a foreseeable break, like when it's no longer biking season or you've suffered a recent injury, please make sure you follow these steps to store your battery and maintain its health:

  1. Always ensure the battery is off and the bike is not on.
  2. Always charge your battery in a temperature controlled environment, between68 °F – 86 °F (20 °C – 30 °C).
  3. RAEV ebikes use lithium ion batteries; these types of batteries should never be stored with an empty charge. Before you store your ebike for months, make sure you charge the battery to a 75%-80% range. Check on it every month to make sure the percentage of the battery's energy doesn't drop under 75%. This will help you to extend the battery's life.
  4. Store the battery in a dry, climate-controlled, indoor location between 32 °F – 86 °F (0 °C – 30 °C).
  5. Do not leave the battery attached to the bike frame for a prolonged period of time; Remove it from your ebike when storing long-term.

Disc Brake Overview

Disc brakes are a common form of bicycle brake and a staple for RAEV ebikes. They activate when a rider pulls on an electric bike's brake levers, applying braking force from the brake lever to the rotor (or disc) that is mounted on the hub of the bike. This applied resistance, in turn, reduces a bike rider's overall speed.

Hydraulic Disc Brake

The Bullet GTX comes equipped with hydraulic disc brakes. Hydraulic disc brakes use a sealed fluid system to apply braking force from the bike's brake lever. Brake fluid is housed within the hydraulic braking system, which connects to an internal piston. When the brake lever is pulled, the piston forces brake fluid towards the brake caliper. The pistons inside the brake caliper then take over that force, pushing the brake caliper against the brake pads and into the disc rotor. The end result, slowing the rotation of your Bullet GTX's rotor and the wheel.

Front Fork Usage:

  1. Proper Installation: Before using the front fork, ensure it is correctly installed and securely fastened to the bicycle.

  2. Regular Inspection: Periodically inspect the front fork for any signs of damage, wear, or loose components.

  3. Post-Use Cleaning: After each use, wipe off dirt and debris to maintain the cleanliness of the front fork.

  4. Lubrication Recommendation: It is recommended to lubricate the moving parts of the front fork.

  5. Professional Caution: Do not attempt to disassemble or modify the front fork unless you are a qualified professional.



Common Front Fork Issues:

Stiffness or Lack of Suspension:

Check if the suspension is properly adjusted according to your weight and riding conditions.

Inspect for any visible damage or signs of wear on the suspension components.



Unusual Noises:

Investigate any unusual sounds during compression or rebound.

Ensure that all bolts and fasteners are securely tightened.

Insufficient grease causes this, and can be improved by adding a little grease along the pipe wall.

Add grease regularly.



Uneven Compression or Rebound:

Test the front fork for consistent compression and rebound.

Inconsistent performance may suggest internal issues that require professional inspection.



Loose Components:

Regularly check and tighten all bolts and fasteners.

Loose components can lead to instability and compromise safety.



Corrosion:

Inspect the front fork for any signs of corrosion, especially in areas exposed to the elements.

Address any rust or corrosion promptly to prevent further damage.



Improper Installation:

Verify that the front fork is correctly installed and aligned with the bike frame.

Incorrect installation can lead to handling issues and safety concerns.



Excessive Play:

Check for excessive play or wobbling in the front fork.

Excessive play may indicate worn-out bearings or other internal problems.

If you encounter any of these issues, it is recommended to consult the user manual for specific troubleshooting steps or seek assistance from a professional bike mechanic. Regular maintenance and timely addressing of problems contribute to the optimal performance and safety of the front fork.
